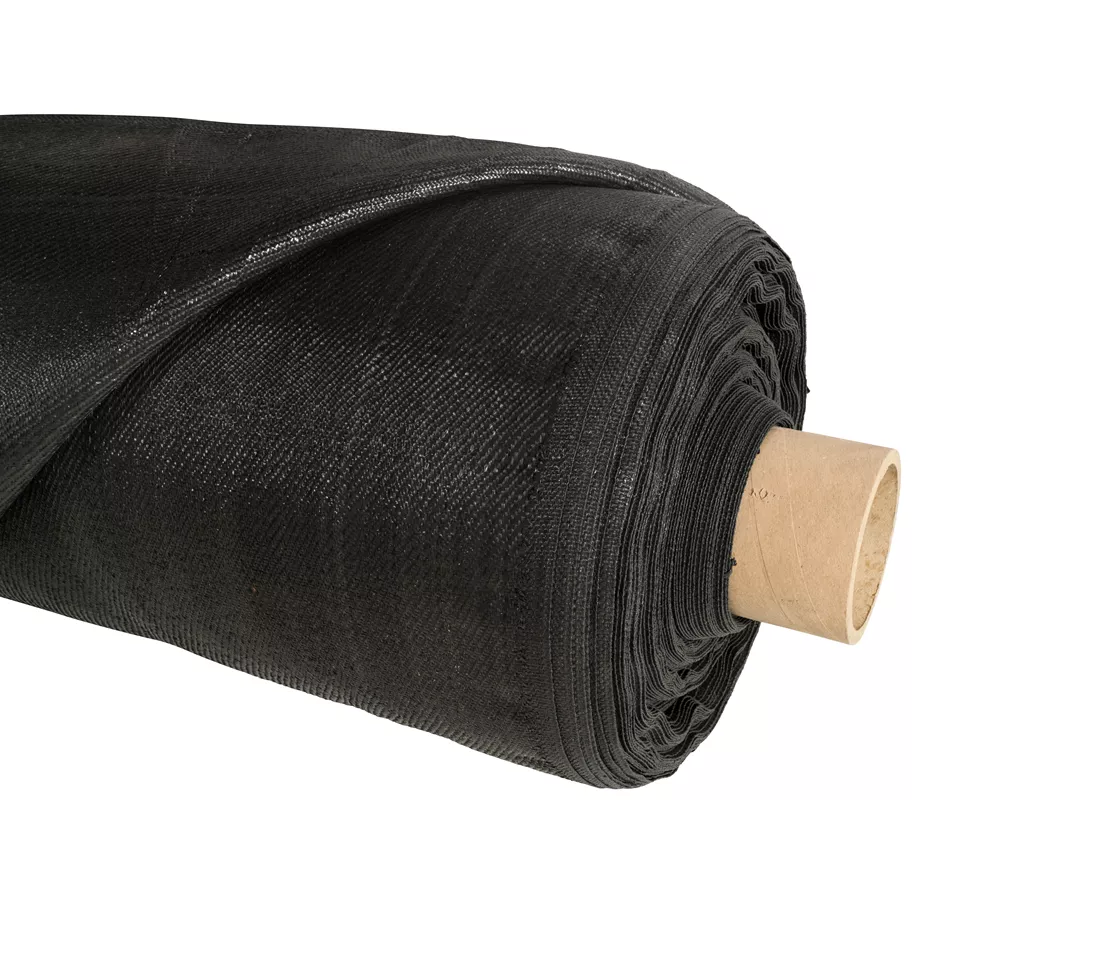

TRICOTEX® 48/230 Geotextile

TRICOTEX® 48/230 is a high-performance geotextile made of PP tapes for demanding separation and reinforcement of subgrades. It improves ground stability, distributes loads reliably and supports the long-term build-up of load-bearing layers. Its high tensile strength and good hydraulic properties make the material especially suitable for heavily loaded applications. The geotextile offers an economical and functional solution for projects with increased requirements for safety and durability.

Application
Suitable for traffic areas, paths, car parks, haul roads and landscaping. Ideal for subgrades that must be permanently separated, stabilised and reinforced.

Brand

TRICOTEX

Material

PP - BAENDCHEN

Thickness

EN 9863-1 (bei 2 kN/m2) = 1.1 mm

Material weight

EN 9864 = 235 g/m2 g/m²

Tensile strength (longitudinal)

EN 10319 = 50 kN/m

Tensile strength (transverse:)

EN 10319 = 50 kN/m

Elongation (longitudinal)

EN 10319 = 15 %

Elongation (transverse)

EN 10319 = 11 %

Punch penetration force

EN ISO 12236 = 6 kN

Breakdown resistance

EN ISO 13433 = 8 mm

Flow rate perpendicular to the plane

EN ISO 11058 = 18 l/m2/s

Characteristic opening width

EN ISO 12956 = 0.2 mm

Weather resistance

EN 12224 (nach 50MJ) = 90 %
