Tricotex 40/190

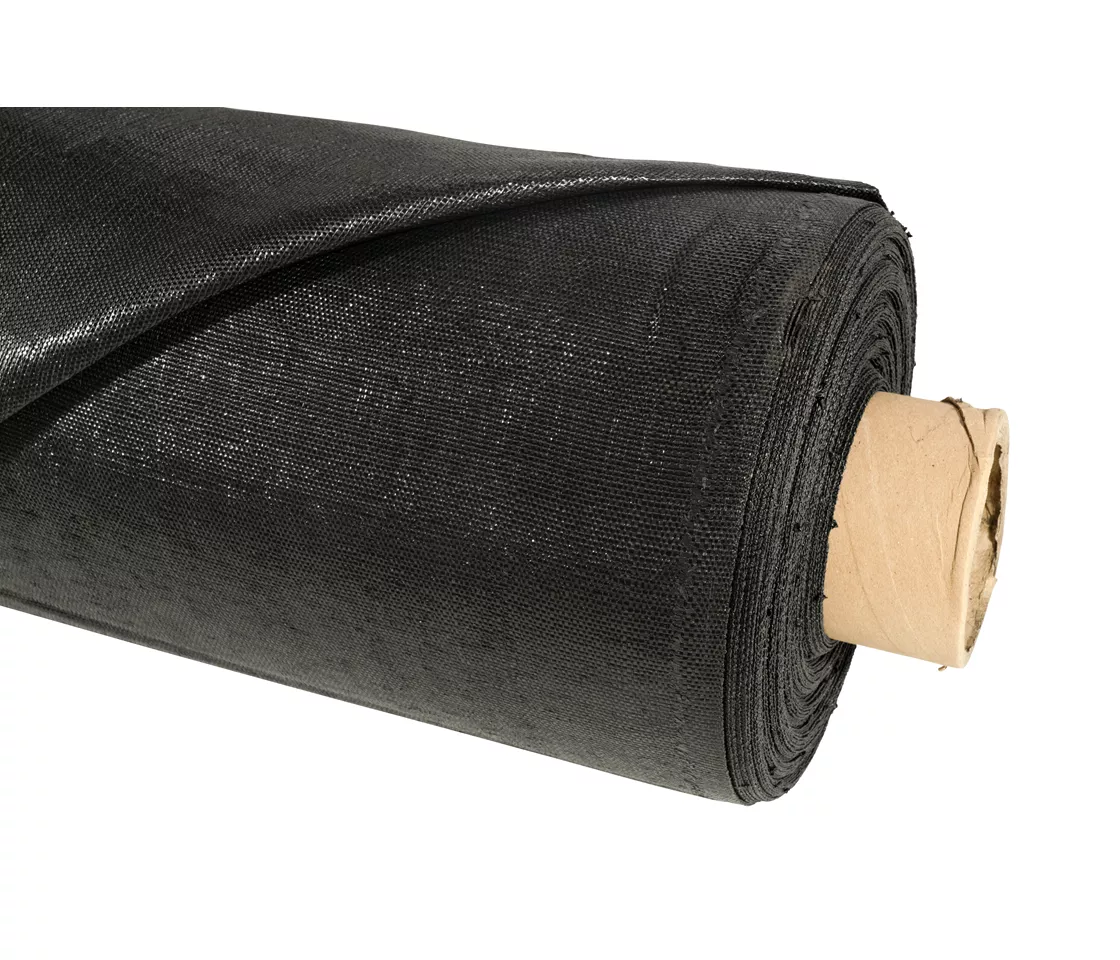

TRICOTEX® 40/190 Geotextile

TRICOTEX® 40/190 is a highly durable geotextile made of PP tapes for separation, stabilisation and reinforcement of subgrades. The material supports even load distribution and improves the bearing capacity of weaker soils. At the same time, it ensures durable separation between the subsoil and the foundation layer. With its high mechanical strength and reliable hydraulic properties, this geotextile is suitable for demanding civil engineering and transport infrastructure applications.

Application
Suitable for road construction, forest tracks, haul roads, car parks and landscaping. Ideal for heavily loaded areas and demanding ground conditions.

Brand

TRICOTEX

Material

PP - BAENDCHEN

Thickness

EN 9863-1 (bei 2 kN/m2) = 0.8 mm

Material weight

EN 9864 = 190 g/m2 g/m²

Tensile strength (longitudinal)

EN 10319 = 40 kN/m

Tensile strength (transverse:)

EN 10319 = 40 kN/m

Elongation (longitudinal)

EN 10319 = 17 %

Elongation (transverse)

EN 10319 = 15 %

Punch penetration force

EN ISO 12236 = 4.5 kN

Breakdown resistance

EN ISO 13433 = 10 mm

Flow rate perpendicular to the plane

EN ISO 11058 = 7 l/m2/s

Characteristic opening width

EN ISO 12956 = 0.2 mm

Weather resistance

EN 12224 (nach 50MJ) = 90 %
