Tricotex 25/130

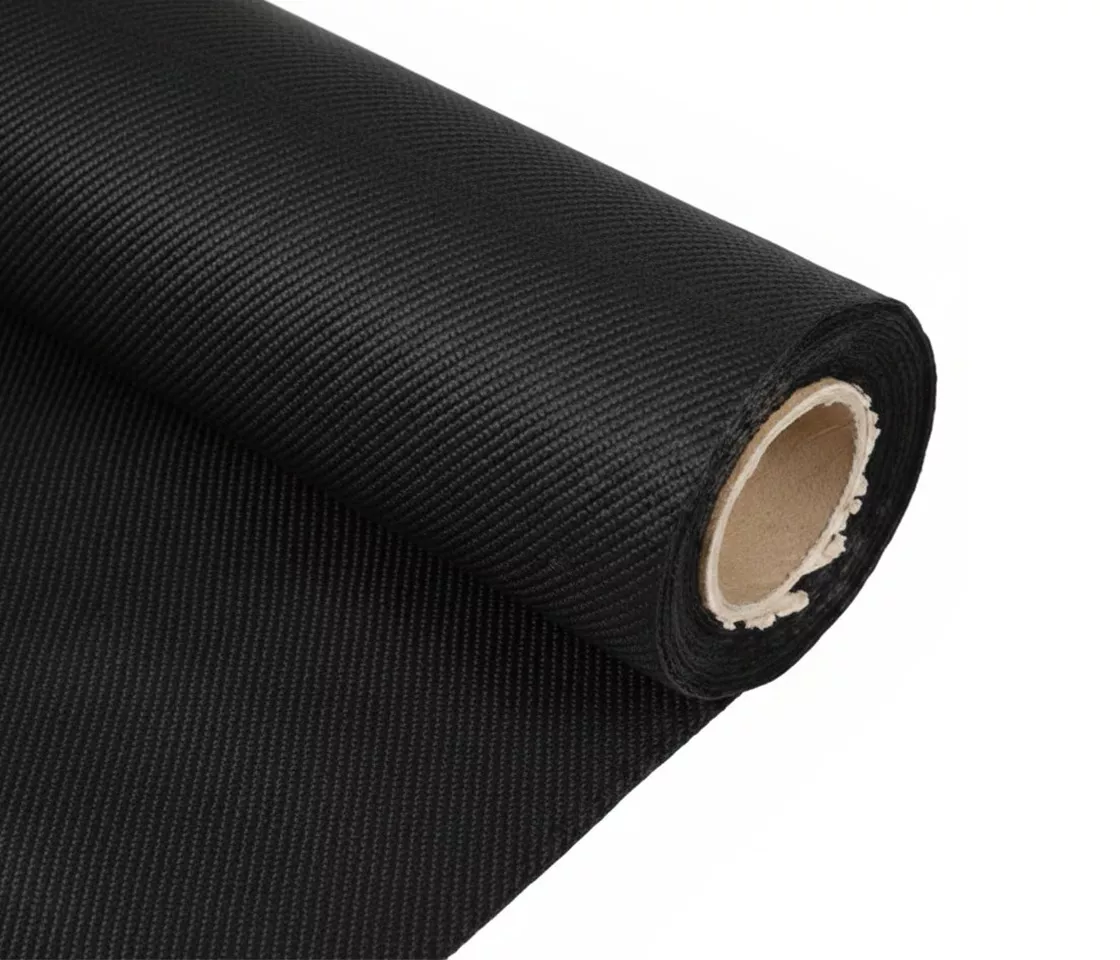

TRICOTEX® 25/130 Geotextile

TRICOTEX® 25/130 is a durable geotextile made of PP tapes for effective separation and reinforcement of subgrades. The geotextile improves the load-bearing capacity of the ground, supports layer stability and ensures reliable separation of different materials. Thanks to its matched mechanical and hydraulic properties, it is suitable for applications with higher demands on strength and durability. The material provides a functional and economical solution in transport and landscaping projects.

Application
Suitable for roads, paths, transport areas, car parks and landscaping. Ideal for projects with increased requirements for ground reinforcement and separation.

Brand

TRICOTEX

Material

PP - BAENDCHEN

Thickness

EN 9863-1 (bei 2 kN/m2) = 0.6 mm

Material weight

EN 9864 = 125 g/m2 g/m²

Tensile strength (longitudinal)

EN 10319 = 25 kN/m

Tensile strength (transverse:)

EN 10319 = 25 kN/m

Elongation (longitudinal)

EN 10319 = 15 %

Elongation (transverse)

EN 10319 = 11 %

Punch penetration force

EN ISO 12236 = 3 kN

Breakdown resistance

EN ISO 13433 = 12 mm

Flow rate perpendicular to the plane

EN ISO 11058 = 7 l/m2/s

Characteristic opening width

EN ISO 12956 = 0.25 mm

Weather resistance

EN 12224 (nach 50MJ) = 90 %
