Tricotex 14/75

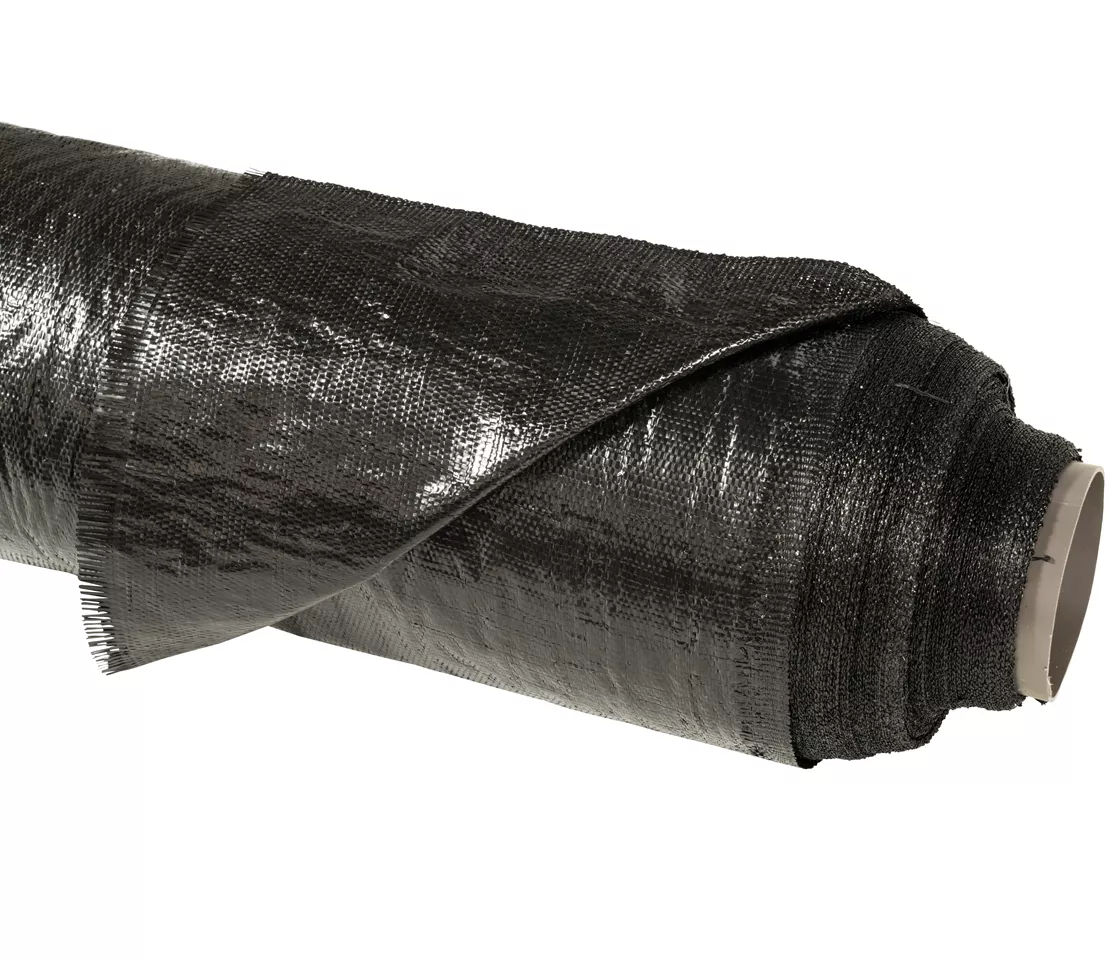

TRICOTEX® 14/75 Geotextile

TRICOTEX® 14/75 is a geotextile made of PP tapes with balanced properties for separating subsoil and base layers and for reinforcing the ground. The material supports load distribution and improves subgrade stability. At the same time, its structure enables functional water passage and contributes to durable layer separation. The geotextile is suitable for a wide range of civil engineering and landscaping applications and offers reliable mechanical and hydraulic performance.

Application
Suitable for road construction, forest tracks, haul roads, car parks and landscaping. Ideal for separating, stabilising and reinforcing subgrades.

Brand

TRICOTEX

Material

PP - BAENDCHEN

Thickness

EN 9863-1 (bei 2 kN/m2) = 0.3 mm

Material weight

EN 9864 = 75 g/m2 g/m²

Tensile strength (longitudinal)

EN 10319 = 14 kN/m

Tensile strength (transverse:)

EN 10319 = 14 kN/m

Elongation (longitudinal)

EN 10319 = 14 %

Elongation (transverse)

EN 10319 = 10 %

Punch penetration force

EN ISO 12236 = 1.8 kN

Breakdown resistance

EN ISO 13433 = 21 mm

Flow rate perpendicular to the plane

EN ISO 11058 = 5 l/m2/s

Characteristic opening width

EN ISO 12956 = 0.3 mm

Weather resistance

EN 12224 (nach 50MJ) = 90 %
